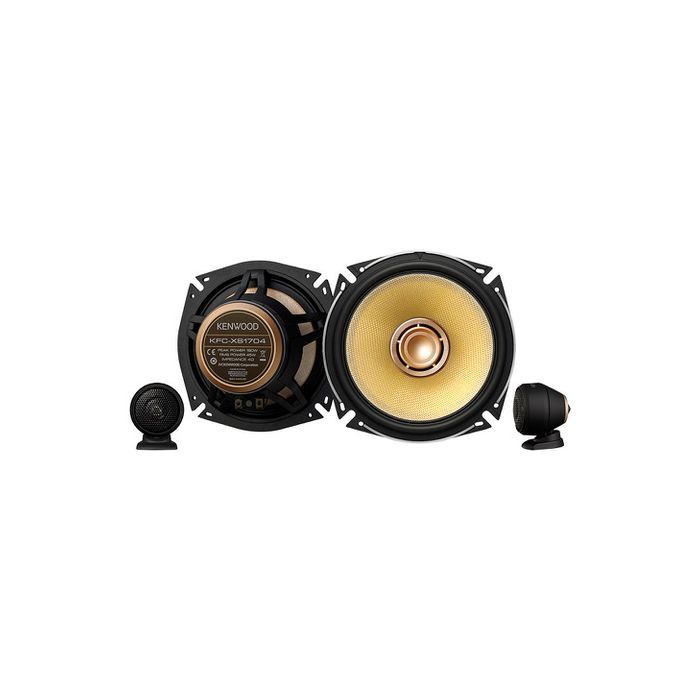

XS-series ultra-high grade speaker that deliver high density realistic sound and a spatial sound impression. The new 17cm component speaker KFC-XS1704 are precisely designed for High-Resolution Audio by using High Rigid Glass Fiber Diaphragm, Magnietic Circuit with Aluminum Ring and Phase Correcting Diffuser. High-Res Sound is Refined Further with 2-Way Tweeter.This unique 2-way tweeter creates a wide range of sound as each of the 2 tweeters reproduces a different frequency band delivering clarity and fullness.
Key Features
- 17cm 2-way, 4-speaker system
- 45W Rated input power (RMS)
- Golden glass fiber & non-woven woofer cone
- Special phase plug with center dip design
- AFC and Tornado spider damper.
- Optimized magnetic circuit with aluminum short ring
- Unique 2-way tweeter with swivel application
- Outer (hard) and inner (soft) tweeter diaphragm
- High-res audio compatible
- Attached crossover network
Speaker Features
- Speaker System 2-way component
- Speaker Type Component
- High-Resolution Audio certified
- Peak Input Power 180W
- Rated Input Power 45W
- Speaker Size 170mm
- Speaker Cone Design
- Carbon-Glass Fiber Cone
- Magnet Type Ferrit
- Terminals Slide types
- Silver plated Terminals
- Swifel Capability
Speaker/woofer Specifications
- Peak Input Power 180W
- Rated Input Power 45W
- Woofer Cone material Glass Fiber Cone
- Woofer cone dimensions 156mm ø
- Center Cap Type Optimized Phase Plug
- Speaker Basket Aluminum Die-Cast
- Speaker Surround Rubber
- Spider Type AFC, Tornado shape
- Sensitivity 83dB/W/m
- Frequency Response 34Hz ~ 56Hz
- Speaker Impedance 4Ω
- Dimensions (W x H x D) 156 x 156 x 65.8mm
- Mounting Depth 57mm
- Mouting Hole Diameter Ø 142mm
- Speaker Weight 810gr
Tweeter Specifications
- Dimensions 51.7 x 42.6 x 67.5mm
- Cone Material Titanium Hard Dome + Soft dome
- Magnet Type Neodymium
- Speaker Weight 80gr
Accessories
- Bracket for Mitubischi
- Connection cable for Nissan
- Conection cable for Toyota & Mitsubishi
- Connection tap (4 pcs)
- Speaker cable (2pcs)
- Tweeter Spacer (2 pcs)
- Tweeter bracket (2 pcs)
- Screws (Parker-type) Ø 4 x 16mm, 8 pieces
- Screws (Parker-type) Ø 5 x 20mm, 8 pieces
- Screws (Parker-type) Ø 6 x 20mm, 8 pieces
- Screws (Parker-type) Ø 3 x 12mm, 4 pieces
- Screws (M-type) M5 x 16mm, 8 pieces
- Speed nut φ 3, 4 pieces
- Installation brackets 2 pieces
- Buttyl rubber
