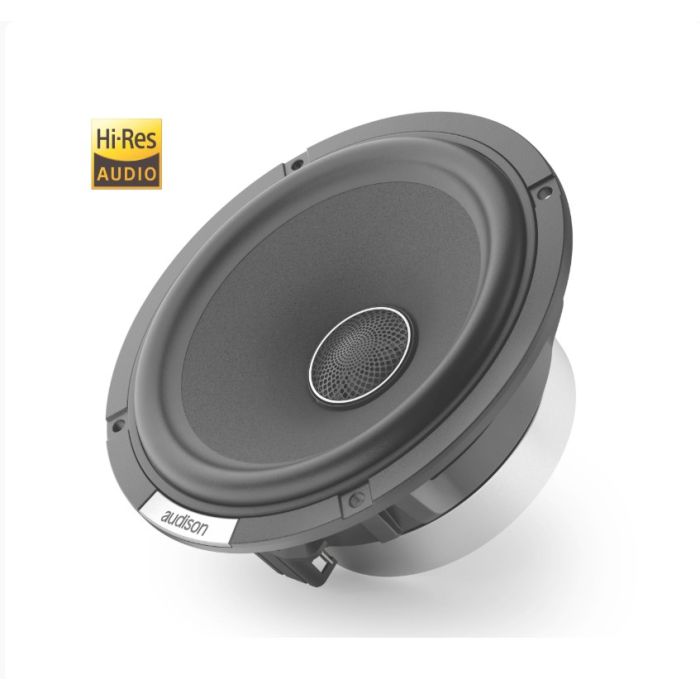

The Audison VOCE II AVX 6.5 coaxial speaker is a standout component in the VOCE II line, offering a unique combination of a 6.5-inch woofer and a 1-inch Hi-Res certified dome tweeter. Achieving Hi-Res Audio certification for a coaxial setup is particularly significant, reflecting the meticulous design of every element from the grille to the basket. Designed for bi-amplification, this speaker can be actively optimized with a DSP while maintaining the flexibility of separate passive crossovers for each driver. It also includes versatile OEM-style connectors, enhancing integration and performance in any vehicle setup.
Specifications:
- Woofer Size - 165 mm
- Impedance - 4 Ohm
- Minimum Impedance - 3.1 Ohm
- Power Handling - Peak - 240 W
- Power Handling - Continuous - 120 W
- Sensitivity - 91.5 dB
- Frequency Response - 45 ÷ 40000
- Voice Coil Diameter - 40 mm
- Chassis Material - ALUMINIUM
- Magnet Material - HIGH DENSITY FLUX FERRITE
- Magnet Size - 100-45-18
- Voice Coil Material - CCAW
- Former Material - GLASS FIBER
- Cone Material - SEMI-PRESSED PAPER
- Surround Material - RUBBER
- Flux Density - 0.84
- Xmax - 4.95 mm
- Xmech - 7.5 mm
- Gap Height -6 mm
- Voice Coil Winding Height - 13 mm
- Hi-Res Audio Certified, Extending Up to 40 kHz: Delivers detailed high-frequency reproduction with improved off-axis response, ensuring exceptional performance even when the tweeter is not directly aligned with the listener, ideal for in-car installations.
- Concentric coaxial tweeter: Integrated within the woofer coil to create a single point of sound emission, providing an immersive soundstage that mirrors the experience of a live performance.
- Cone optimized through FEM simulations: Jointly designed between woofer and tweeter to improve frequency response and sound dispersion, ensuring uniform and precise sound coverage, ideal for car installations.
- Dual Crossover Design with Active Filtering: The AVX 6.5 II features independent AVCX 2 XT and AVCX 2 XW crossovers for the woofer and tweeter, offering precise frequency control for unmatched clarity. With active filtering compatibility, it delivers professional-grade customization and seamless integration into high-end audio systems.
- 1” (25 mm) Tetolon soft dome with integrated mesh grille: Designed with advanced technologies, it offers warm and natural sound reproduction, ensuring smooth and extended response across all frequencies.
- 1.6” (40 mm) Woofer voice coil in CCAW: Maximizes heat dissipation and excursion capability, allowing the woofer to achieve 100W RMS power for powerful and deep bass.
- Low Inductance Design: Optimizes upper midrange (2-3 kHz) reproduction, improving the clarity of vocals and instruments, thanks to an aluminum shorting ring built-in the motor.
- Oversized Magnetic Assembly: Provides exceptional thermal stability, ensuring optimal dynamic reserve in any listening condition.
- FEM optimized Magnetic Circuit Geometry: Maximizes efficiency by concentrating the magnetic field on the coil for more precise, dynamic sound.
- Semi-pressed Pulp Cone with Cotton Fibers: Combines rigidity and lightness for a wide frequency response and clean reproduction, even in midrange frequencies.
- Die-Cast Aluminum Basket with magnet cover: Enhances heat dissipation and reduces turbulent airflows, ensuring maximum rigidity and high performance over time, even during prolonged use.
- High Excursion Butyl Rubber Surround and Optimized Spider: Uses advanced simulations to ensure greater linearity and cone control, reducing distortion during intense excursions.
- Installation Flexibility: Equipped with OEM-style and Faston connectors, offering maximum installation versatility. Includes two provided adhesive Audison logos, allowing for personalized placement to enhance branding and aesthetics.
- Optional Black or Silver Mesh Metal Grille: Provides robust protection without compromising acoustic performance, adding a touch of elegance to the installation for perfect cabin integration.
