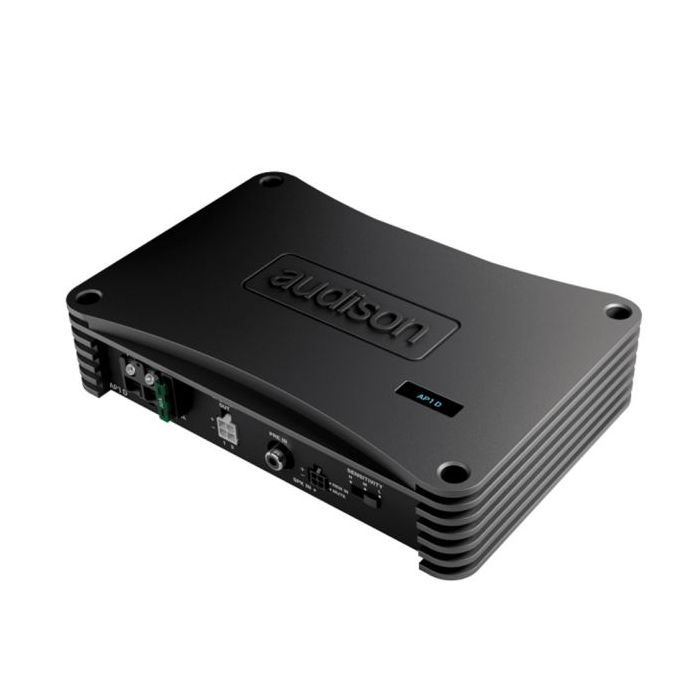

The AP1 D amplifier was designed to drive a subwoofer and is the ideal extension of the AP8.9 bit and AP4.9 bit. At 2 Ohms it is stable and can supply 540 W power with extremely compact dimension. With the APTK 3 (Audison Prima Tower Kit 3) staking system it’s possible to stack the AP1 D and save space without any problem of overheating.
- Voltage: 7.5 % 15 VDC
- Idling Current: 1A
- Switch Off: <0.05mA
- Consumption @ 14.4 VDC 4 Ohm Max Musical Power (Without CPL): 30A
- Consumption @ 14.4 VDC 2 Ohm Max Musical Power (Without CPL): 44A
- Remote In: 7 % 15 VDC (1mA)
- Fuse: 30A
- Distortion - THD @ 1 kHz, 4 Ohm, 90% Power: 0.2%
- Distortion - THD @ 100 Hz, 4 Ohm, 90% Power: 0.3%
- Bandwidth (-3 dB, 2V RMS, 4 Ohm): 16%40k Hz
- S/N Ratio @ A Weighted, 1,5V, Max Power: 100 dBA
- Damping Factor @ 100 Hz, 2 VRMS, 4 Ohm: 150
- Damping Factor @ 100 Hz, 2 VRMS, 4 Ohm: 160
- Input Sensitivity PRE IN: Selectable 1,5 - 3,0 - 4,5 V RMS
- Input Sensitivty SPEAKER IN: Selectable 3,0 - 6,0 - 9,0 V RMS
- Input Impedance: 15K Ohm
- Load Impedance (Min)
- ch1: 2 Ohm
- Max Power: 540 Watts
- Output Power (RMS) @ 14.4 VDC, 1% THD:
- 1 Ch @ 4 Ohm: 310 Watts
- 1 Ch @ 2 Ohm: 540 Watts
- Output Power (RMS) @ 14.4 VDC, 10% THD:
- 1 Ch @ 4 Ohm: 380 Watts
- 1 Ch @ 2 Ohm: 680 Watts
- Output Power @ 4 Ohm <1%THD+N, 14.4V: 310 Watts x1
- SN Ratio (ref. 1 W output): 79 dBA
- Preout input: RCA
- Speaker Input: Wired
- Mute (Energy Saving Control): Wired from AP4.9 bit/ AP5.9bit
- Ambiant Operating Temp Range: 0 C to 55 C ( 32 f to 131 F )
- Max Size (mm/in): 198 x 45.50 x 134 , 7.8 x 1.8 x 5.27
Weight (kg/Ib): 1.32 / 2.91
