Alexa Built in
Amazon Alexa now built-in to KENWOOD's compatible car stereos. Ask Alexa for traffic information, select music from your Amazon music playlists, get the latest news, football scores, switch on your lighting, heating or open the garage door from the car stereo. Bringing your home into your car.
Driving while on the phone / touching it could get you: 6 points and a £200 fine. With Kenwood's Bluetooth receivers you stay safe and legal by connecting your phone via Bluetooth or via the USB lead (easy pairing for iPhones / Android smartphones). Then you can make calls by using voice activation like Siri.

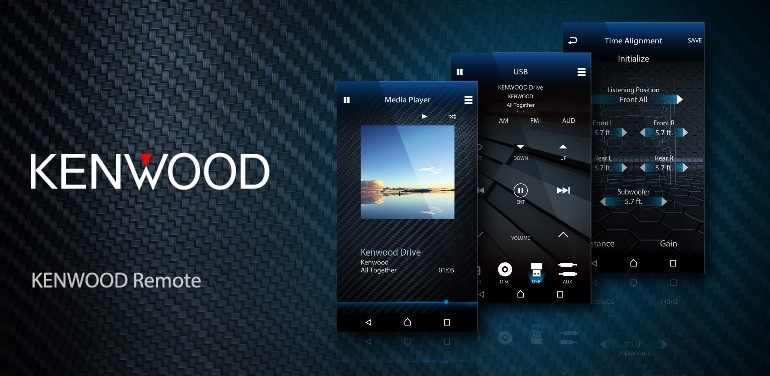

KENWOOD Remote app ready
By downloading the Kenwood Remote App from the Apple App Store or Google Play Store you can simply set-up your Kenwood car stereo on your phone directly.
- Bluetooth handsfree & audio streaming built-in
- MP3/WMA/AAC/WAV/FLAC playback
- DSP, DTA & 13-band EQ built-in
- KENWOOD Remote app ready
- Music Mix app ready
- Amazon Alexa ready
- 13 digits, 1 Line Wide LCD Display
- Red Key & White Display Illumination
- English/Russian/Spanish/French&German GUI language
- 1 RCA (rear or sub) Preout (2,5V)
- DIN Size 1 DIN
- Detachable Faceplate
- Key Illumination Red LED
- Rotary Encoder & Control Knob
- Dual Accent Key Handsfree & Audio Streaming
- Back-up Memory Tuner presets & menu settings
- Attenuator with Smooth Volume Return
- Touch Sensor Tone
- Digital Clock (24H)
- Clock display when power-off default off
- All-off Select (20/40/60 minutes)
- Built-in Connector Mitsumi, 16 pin
- ISO connector, Mitsumi to ISO cable
- Bluetooth unit built-in
- USB interface x 1, (Front)
- Firmware upgreadable
- Display Type Liquid Crystal Display (LCD)
- Display Layout 1 line 13 Segments x 13 Digit
- Vertical Aligment Liquid Crystal Display
- Display Illumination White (LED)
- Dimmer Control Manual / Set by Timer
- Brightness control 0 - 31 steps
- Demo Mode
- Menu text in selectable language English(default) / Spanish / French / German / Russian
- Dress plate Black Injection
- Preset key finish Black Injection
- Escutcheon finish Piano Black
- Volume & operation knob or wheel Transparant Lighting
- Triangle Illumination Red LED
- Front terminals dust cover
- Key illumination Red LED
- Illuminated front USB port Red LED
- Brightness Control (Key) 0 - 31 step
- Dimmer Control (Key) Manual / Set by Timer
- Chrome-finished accents Volume knod & faceplate
- Station Select Manual / Preset
- FM Reception
- AM (MW/LW) Reception
- Tuner Presets (FM/AM) 24 Presets (18FM / 6AM)
- Preset memory w/o back-up power
- Mixed preset memory (FM & AM) 6 presets
- Up/Down Seek/Scan
- Automatic Memory Entry (AME)
- FM Stereo / Mono Selecton
- Radio Data System
- Radio Text Plus
- Traffic Information
- Local search
- AF Regional Selectable: AF/AF Reg/OFF
- Auto TP search
- Enhanced Other Networks Function (EON)
- Program Type Function (PTY)
- CE_Playable Audio file
- AAC (*.m4a) files are playable USB
- AAC (*.aac) files are playable USB
- MP3 files are playable USB
- WMA (.wma) files are playable USB
- WAV (.wav) files are playable USB
- FLAC files are playable USB
- USB terminal, Front with dust cover
- USB Type 2.0 High speed
- MP3, WMA, AAC, WAV, FLAC playback
- Repeat/Scan/Random search
- Repeat / Random Play
- Direct search
- Resume play
- Time code display
- 1,5A Smartphone Quick Charge
- Made for iPod & iPhone *
- USB Direct Control (Audio, 1 wire, Lightning-connector) with optional cable KCA-iP103
- Music playback
- Alphabet search
- Skip search
- Related search
- Direct Search
- iPod EQ Mode
- Control by hand
- App & iPod control mode
- Spotify App Link
- iAP over Bluetooth
- iTunes Radio App iAP2
- Reverse browsing
- Battery charge + power control
- * Always update to latest Apple firmware
- Maximum Output Power 50W x 4
- MOSFET Power IC
- Auxiliary Type Mini-jack, front panel
- Pre-out 1 RCA
- Pre-out Output Level 2.5V
- Preout Rear / Subwoofer Switchable
- Subwoofer Reference Level Adj.
- 2-Way X'over network
- 3-Way x'over (bi-amp connection)
- Tone Control / Easy EQ 13 band, 8 presets
- Balance/Fader/Loudness Contro
- Bass Boost Circuit Off/+1/+2/+3/+4/+5
- Att.(-20dB) with smooth Volume Return
- Easy 3-band EQ mode
- Graphic Equalizer + Preset 13-Bands Graphic Equalizer with 8 Presets.
- Digital Sound Processor (DSP) Built-in
- Digital Time Aligment (DTA)
- Low- & High-pass Filter
- Speaker Size Control, Front/rear/subwoofer independently
- Kenwood Sound Reconstruction
- Sound Reconstruction
- Space Enhancer
- Stage EQ
- Drive EQ
Bluetooth General Features
- Hands Free Profile with High Sound Quality HFP V1.7.1
- Max num. of regist. phones for HFP 5 phones
- 2 phones fulltime connection
- Audio Streaming (A2DP)
- High Quality Audio Streaming SBC/AAC
- Max num. of regist. units for A2DP 5 units
- Serial Port Profile (SPP)
- Phonebook Access Profile (PBAP)
- iPhone & Android automatic pairing via USB
- Spotify App Link
- KENWOOD Remote App Ready
- KENWOOD Music Mix Support
- Amazon Alexa ready
- Catchphone / Call Waiting
- Private mode
- Alphabet Search (Phonebook)
- Noise Canceller
- Echo Canceller
- Phone device status display
- Audio device status display
- Signal strength display
- Remaining battery display
- Bluetooth Paring Indicator
- High-quality noise canceling microphone Rear Wired
- Bluetooth firmware upgradeable
- * depends on phone model/make & Kenwood unit
- Front USB & AUX Input
- OEM Wired Remote Control ready
- DC-Cord Mitsumi to ISO
- Power Control (P.CON) wire
- Amplifier pre-out 1 RCA: Rear/Subwoofer (selectable)
- FM Antenna Input JASO connector
- External microphone input 3,5mm mini-jack
- FM range: 87.5Mhz - 108MHz (50Khz step)
- FM Usable Sensitivity 0.56μV/75ohm (S/N 30dBf)
- FM Quieting Sensitivity 1.58μV/75ohm (S/N 46dBf)
- FM Frequency Response 30Hz ~ 15kHz (± 3dB)
- FM Signal to noise ratio (Mono) 68dB
- FM Stereo Separation (1kHz) 40dB
- MW range: 531kHz - 1611kHz (9kHz step)
- MW Usable Sensitivity 28.5μV
- LW range: 153kHz - 279kHz (9kHz step)
- LW Usable Sensitivity 45μV
- Codec Specs
- MP3 Format MPEG 1/2 Audio Layer 3-Files
- WMA Format in accordance with Windows Media Audio
- AAC Format AAC-LC “.aac”(CD&USB) and ".m4a"(USB) files
- WAV Format RIFF waveform Audio Format (only for LinearPCM)
- FLAC Format FLAC files (up to 96kHz/24bit)
- USB Version compatibility USB 1.1 / 2.0 full speed
- File System FAT 32 / 16 / 12
- Maximum Supply current 1500mA
- D/A Converter 24bit
- MP3 Decode Compliant with MPEG-1/2 Audio Layer-3
- WMA Decode Compliant with Windows Media Audio
- AAC Decode "m4a" & "aac" file encoded by AAC-LC format
- WAV Decode Linear - PCM Files
- flac Decode FLAC files up to 96kHz/24bit
- Maximum Power 50W x 4
- Output Power (DIN45324,+B=14.4v) 22W x 4
- Preout Level 2500mV / 10kOhm,
- Preout Impedance ≤ 600Ohm
- Speaker Impedance 4Ohm ~ 8Ohm
- AUX Frequency Response 20Hz ~ 20kHz (±1dB)
- AUX Maximum Input Voltage 1000mV
- AUX Input Impedance 30kOhm
- Equalizer Type Graphic
- Frequency band 13 bands
- Frequency band - Front 62.5Hz ~ 16kHz
- Equalizer Gain –9db ~ +9db
- Q Control 0.25/ 0.50/ 1.00/ 2.00
- High Pass Filter frequency Through/50 ~ 220 (Hz)
- High Pass Filter Slope -12/-18/-24 dB/Oct
- Low Pass Filter frequency 50 ~ 120(Hz)/Through
- Low Pass Filter Slope -12/-18/-24 dB/Oct
- Time Alignment 0 — 610cm(2 cm step)
- Car type
► Full SIZE CAR
► MINIVAN LONG
- Technology Bluetooth V4.2
- Frequency 2.402 - 2.48 GHz
- Output power +4dBm(max), 0dBm (AVE) power class 2
- Maximum range Line of sight approx. 10 meter
- Handsfree profile (HFP)
- Serial port profile (SPP)
- Advanced audio distribution profile (A2DP)
- Audio Codec SBC/AAC
- Audio/Video remote control profile (AVRCP)
- Phonebook access profile (PBAP)
- Release keys 2 pieces
- Installation Sleeve
- DC cord (Mitsumi to ISO)15 cm
- Handsfree Microphonewith 3 m cable
- Operating voltage 14.4V (10.5 ~ 16V Allowable)
- Maximum Current Consumption 10A
- Dark Current Consumption Below 1mA
- Dimensions (WxHxD) 182 x 53 x 100mm
- Weight 600 gr.
- Operation Temperature Range -10°C ~ 60°C
- Instruction Manuals Multi-language quick Guide
