industry's first Class D amplifier to offer eight channels
full-range output capability and is capable of delivering a staggering 100 watts to each of its eight channels @ 2 ohms (14.4V, 1% THD). The breakthrough that makes this much power possible in such a small chassis is our NexD™ ultra-high-speed switching design, which allows for full bandwidth Class D operation with extremely low distortion and outstanding efficiency.
features the v2 Spec feature set, which consists of automatic turn-on capability (via signal sensing or DC-offset sensing), and a dual-range differential-balanced input section able to handle a wide range of input voltage levels. With the addition of an HD-RLC remote level control (sold separately), you have the ability to control the level of two, four, or all eight of the amplifier's channel levels from the driver's seat.
NexD™ Switching Technology
NexD™ amplifier technologies produce exceptional audio quality, unsurpassed total efficiency and high power from very compact amplifier designs.

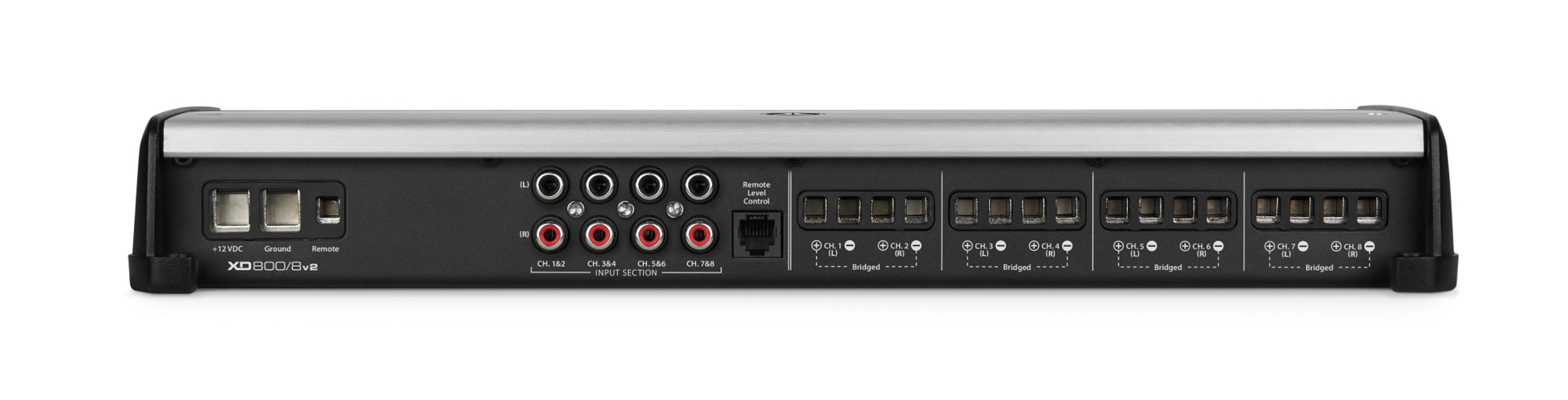

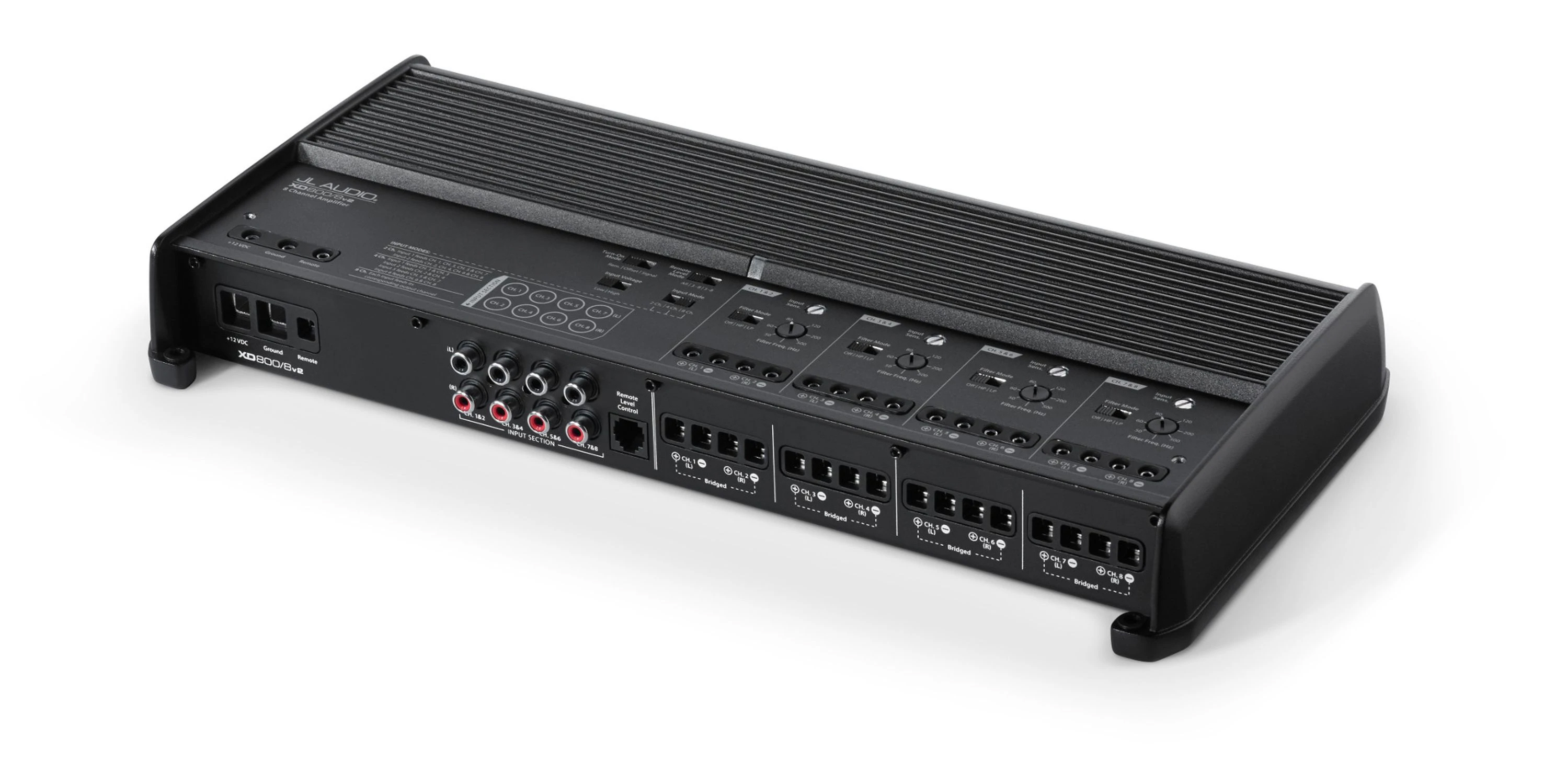

JL XD800 8 Channel Class D Full Range Amplifier
- XD Series 8-Channel Class D Car Amplifier
- RMS Power Rating (14.4V):
- 4 ohms: 70 watts x 8 chan.
- 2 ohms: 100 watts x 4 chan.
- Bridged, 4 ohms: 200 watts x 4 chan.
- RMS Power Rating (12.5V):
- 4 ohms: 60 watts x 8 chan.
- 2 ohms: 90 watts x 4 chan.
- Bridged, 4 ohms: 180 watts x 4 chan.
- Pulse Width Modulated MOSFET power supply
- LED power (green) and protect (red) indicators
- Variable Bass Boost (0 to +12 dB bass boost at 50 Hz)
- Wired remote bass level control optional JL Audio HD-RLC
- Soft start turn-on
- 8/6/5/4/3/2 channel operation
- JL Audio XD-CLRAIC2-SW Speaker-level (high-level) inputs with signal sensing for automatic turn-on harness sold separately
- 3-way protection circuitry (thermal, overload, and speaker short protection)
- Dual speaker terminals simplify the hookup of multiple speakers
- Heavy duty aluminium alloy heat-sink OR high-density split-dome convection heat-sink for extreme heat dissipation
- Input sensitivity:
- 200mV-8 V RMS
- Configurable Variable high/low-pass filter (50-500 Hz, 12 dB/octave)
- Dimensions: 14-3/4"W x 7-1/4"L x 2-1/4"H
- Eight-channel Satellite Amp: drive four pairs of speakers with 75 W x 8
- Big Four-Channel Satellite Amp: bridge to produce 200W x 4 @ 4?
- Six-Channel System Amp: drive front and rear satellites with 75 W x 4 @ 4?, plus two 4? subwoofers with 200 W each
- Staggered Six-Channel Satellite Amp: drive front speakers with 200 W x 2 @ 4?, plus four 4? speakers with 75 W each
- Staggered Five-Channel Satellite Amp: drive three front speakers with 200 W @ 4? + rear speakers with 75 W x 2
- Four-Channel System Amp: drive left and right speakers with 200W x 2 @ 4?, plus two 4? subwoofers with 200W each
- This amplifier features a black powder-coat finish and a gasketed, brushed aluminum cover for the controls.
